Initial Setup

Videos

Each section includes a video. I recommend watching the videos, as there is a lot of information to convey. If you’d prefer to watch on another device, it’s easy to find a playlist with all the videos on YouTube by searching for “briffidi getting started”. If the videos are unavailable, written instructions are included below.

You Will Need

  1. The SW1 and calibration rod.
  2. A compatible smartphone (more below).
  3. Approximately 4,000 (1.35 kg) 4.5 mm (.177 cal) steel BBs.

Install the App and Add Your SW1

<div style="position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden;">
  <iframe allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen="allowfullscreen" loading="eager" referrerpolicy="strict-origin-when-cross-origin" src="https://www.youtube.com/embed/f5ihUCgtZ90?autoplay=0&controls=1&end=0&loop=0&mute=0&start=0" style="position: absolute; top: 0; left: 0; width: 100%; height: 100%; border:0;" title="YouTube video"
  ></iframe>
</div>

  1. A phone running Android 8.1 (Oreo) or later with:

    • NFC capability
    • a physical (not virtual) gyroscope sensor
    • a shape/size that fits securely in the cradle of the SW1

    is required.

  2. If necessary, install the Briffidi SW1 app from Google Play.

  3. Place the phone near the Briffidi decal on the front of the SW1 and move it around until the NFC tag is scanned. The app will open, and the SW1 will be added and selected.

    If the tag won’t scan, ensure that NFC is enabled in your phone Settings. You may need to lift the SW1 to get the tag close to the NFC reader of some phones.
    Place iPhone Near Tag Device Added

Fill the SW1 with BBs

Note: The new cradle lock is not shown in video. See steps below for details.

  1. Unlock the cradle by sliding the locking piece to the rear (newer SW1s) or by removing the cradle stop (older SW1s).
    Unlock Cradle Remove Cradle Stop

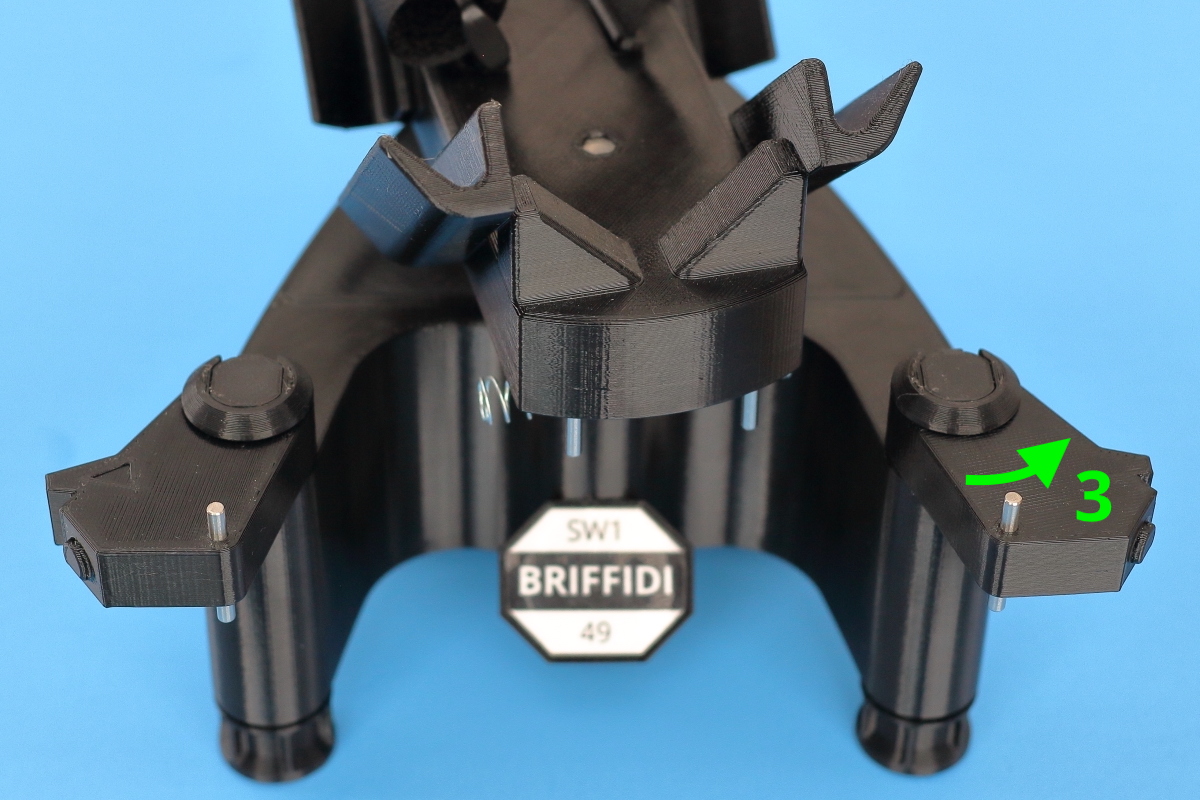

  2. Disengage the spring and rotate the spring stops out.
    Disengage Spring Disengaged Spring
  3. Remove the cradle support piece, if equipped (older SW1s).
    Remove Cradle Support
  4. Remove the retention clip at the back of the SW1 and remove the cover.
    Loosen Rear Thumbscrew
  5. Fill the cavity with BBs to just below the level of the internal ribs.
    Fill with BBs
  6. Replace the cover and reinstall the retention clip.

Initial Setup Complete

Move on to leveling the SW1.
